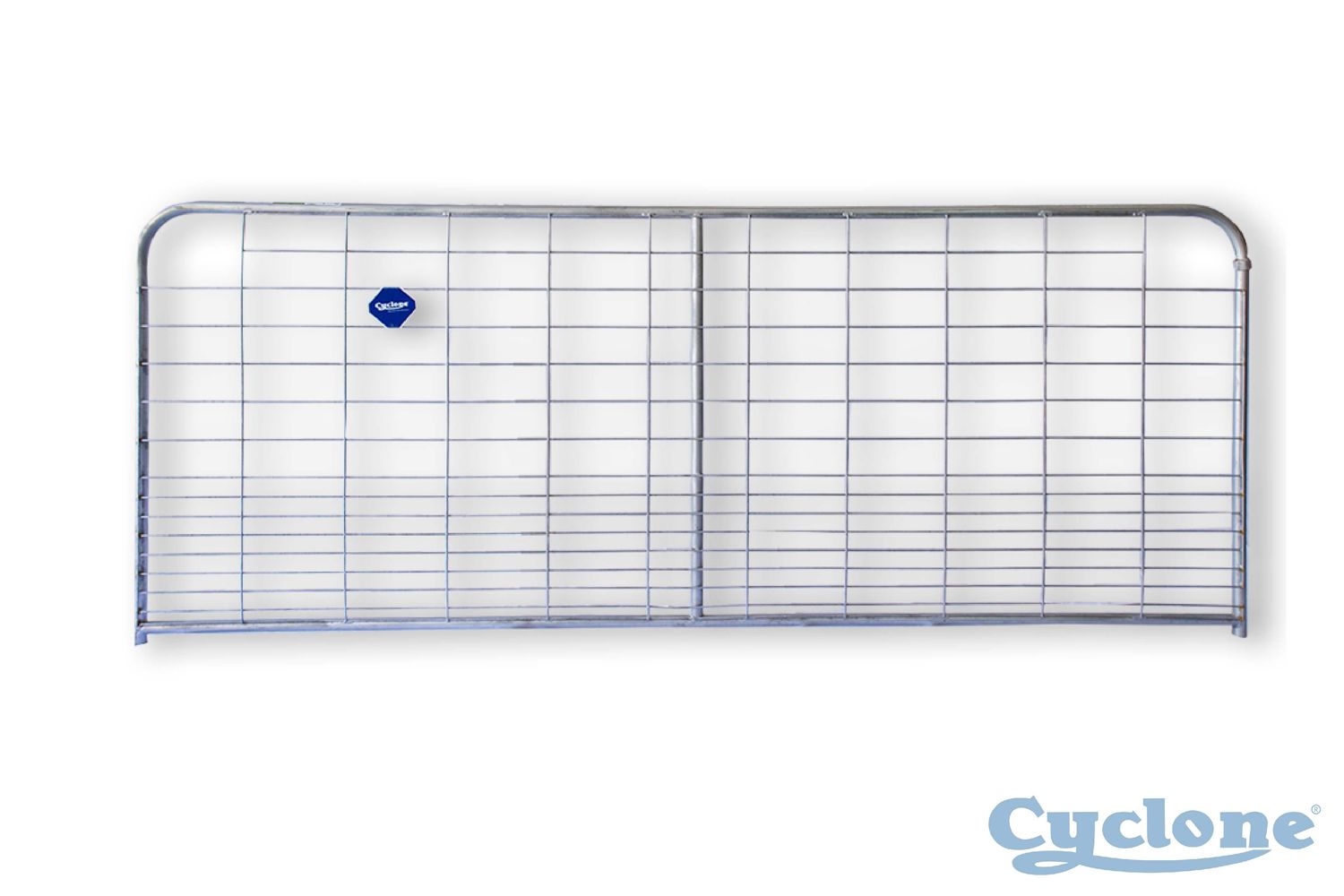

Vertical Brace

The Cyclone vertical brace gate is a versatile ‘value for money’ rural gate.

Welded mesh insert features graduated horizontal wires which increase the density of the strands in the lower part of the gate.

1. Produced from 25NB hot dipped galvanised pipe, with a wall thickness of 2mm, and mesh spacing graduating from 32mm at the bottom of the gate, to a maximum of 100mm at the upper part of the gate (5mm wire thickness).
2. Welded collar attached at hinge end to increase compatibilty with a broader range of gate hardware, including brooker hinges. The pipe used in the gate frame and brace is hot dipped galvanised both inside and out providing corrosion resistance.
3. The pipe used in the gate fram and brace is hot dipped galvanised both inside and out providing corrosion resistance.
4. Each MOQ packed with both left and right hand side configurations and palletised for safer and easier handling.
5. Full notch weld construction.
